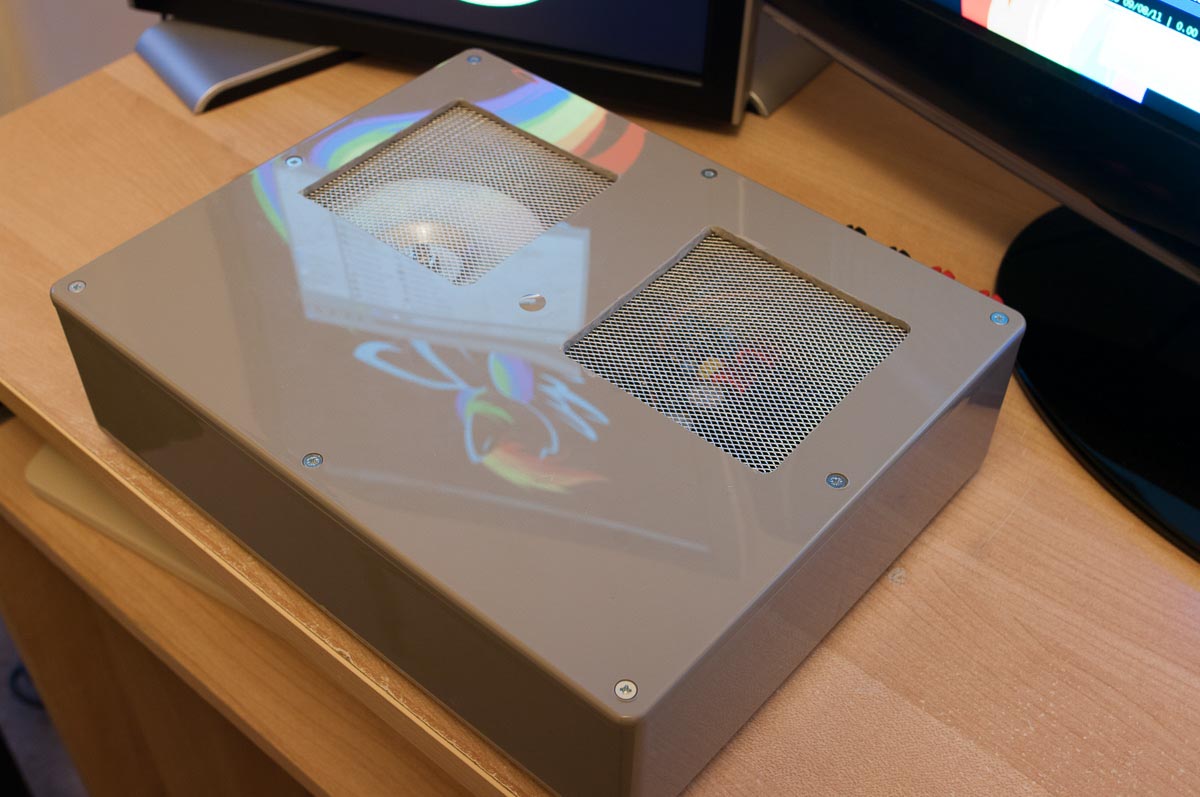

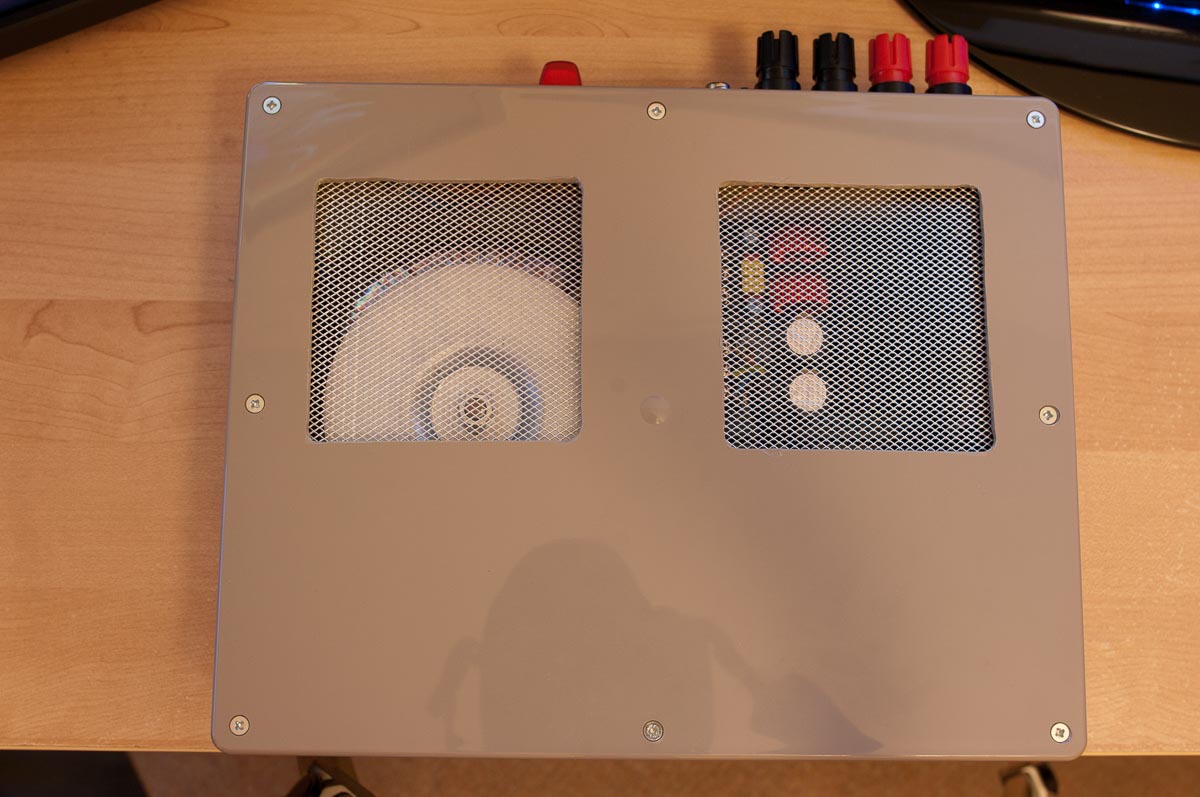

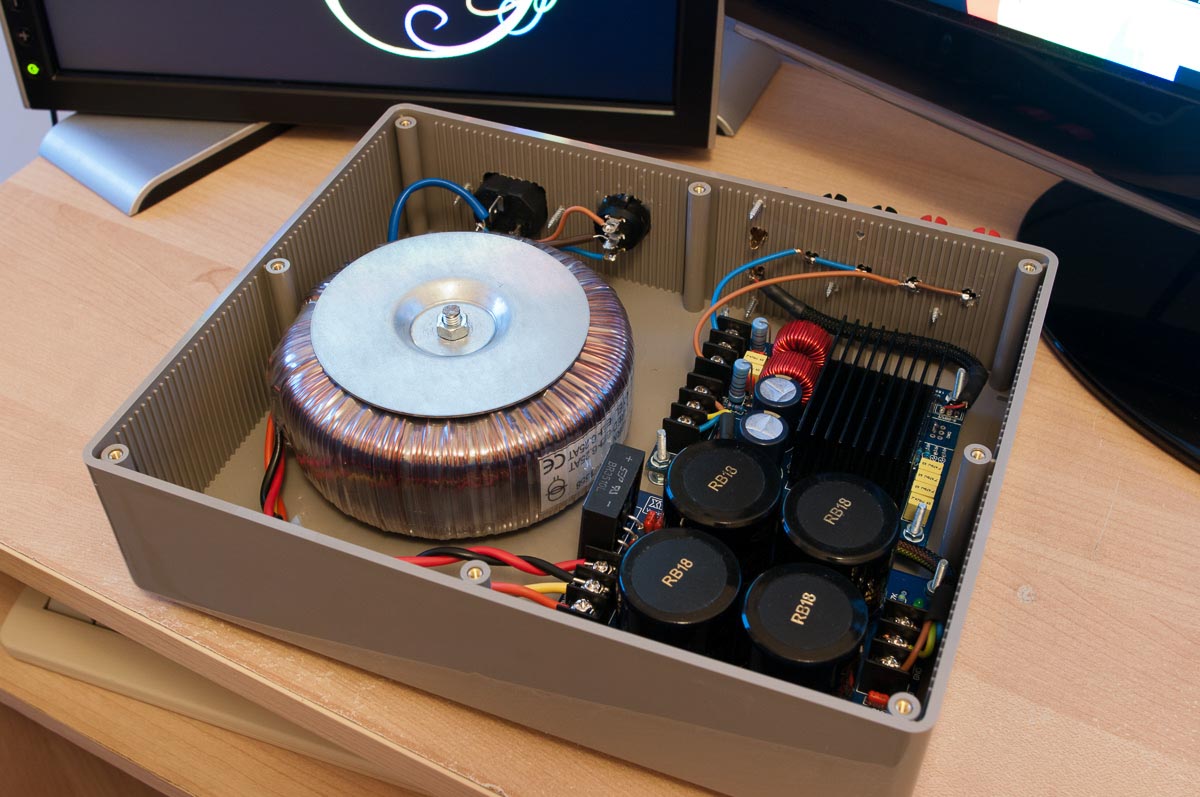

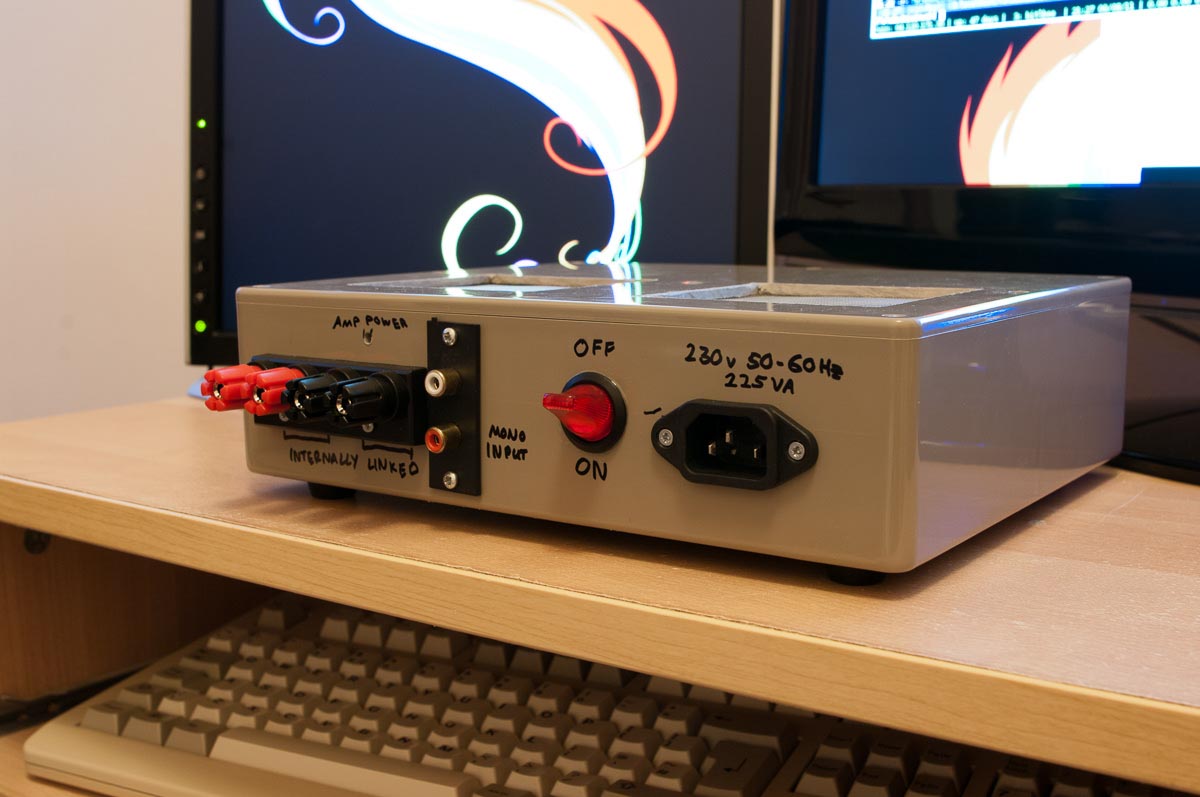

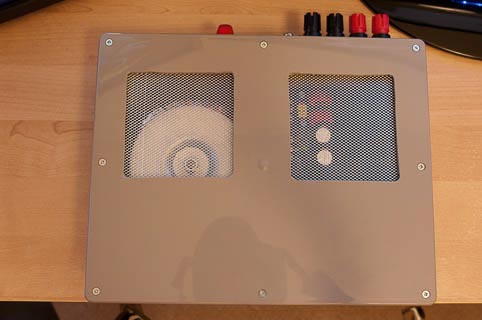

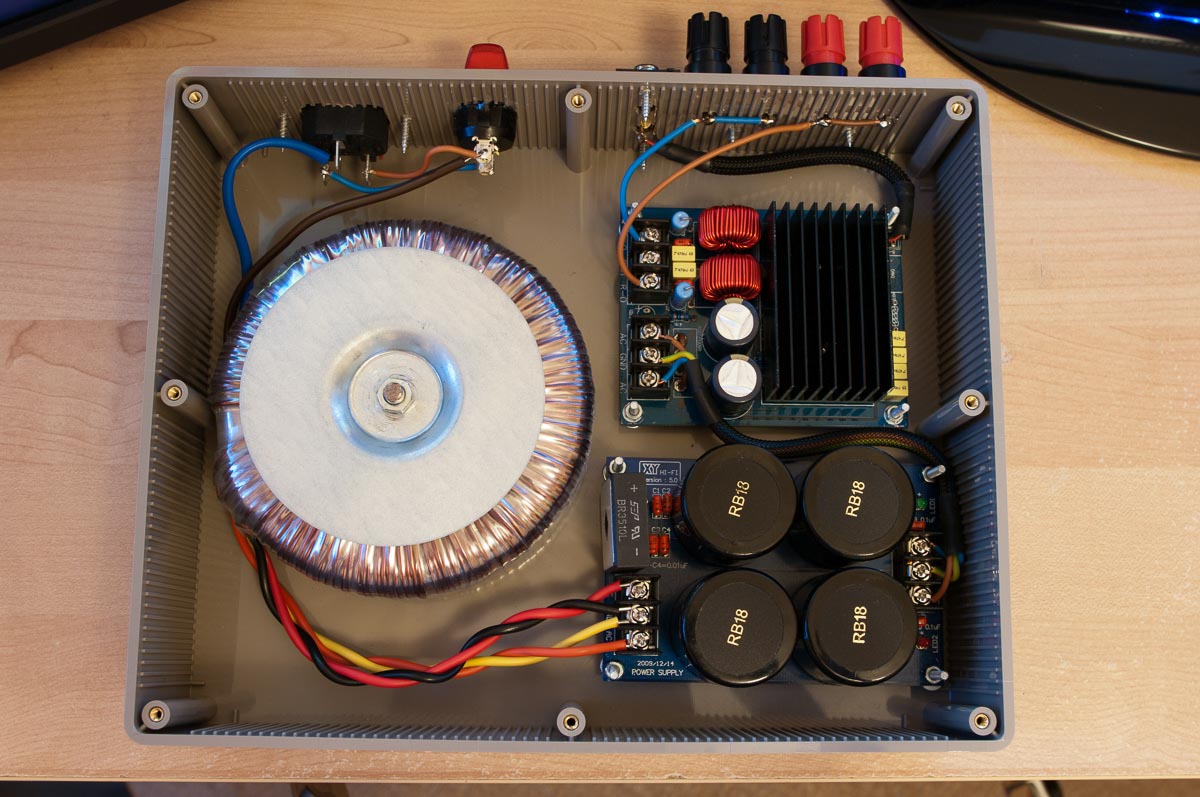

A cheap single channel sub amp using an eBay TDA8920 BTH board & the ubiquitous 'XY HiFi' filter board complete with bulk capacitors of unknown legitimacy.
Note the use of blue/brown mains electrical wiring for the outputs...
The transformer would eventually end up in my LM3886 'Gainclone' 2.1 amplifier.
