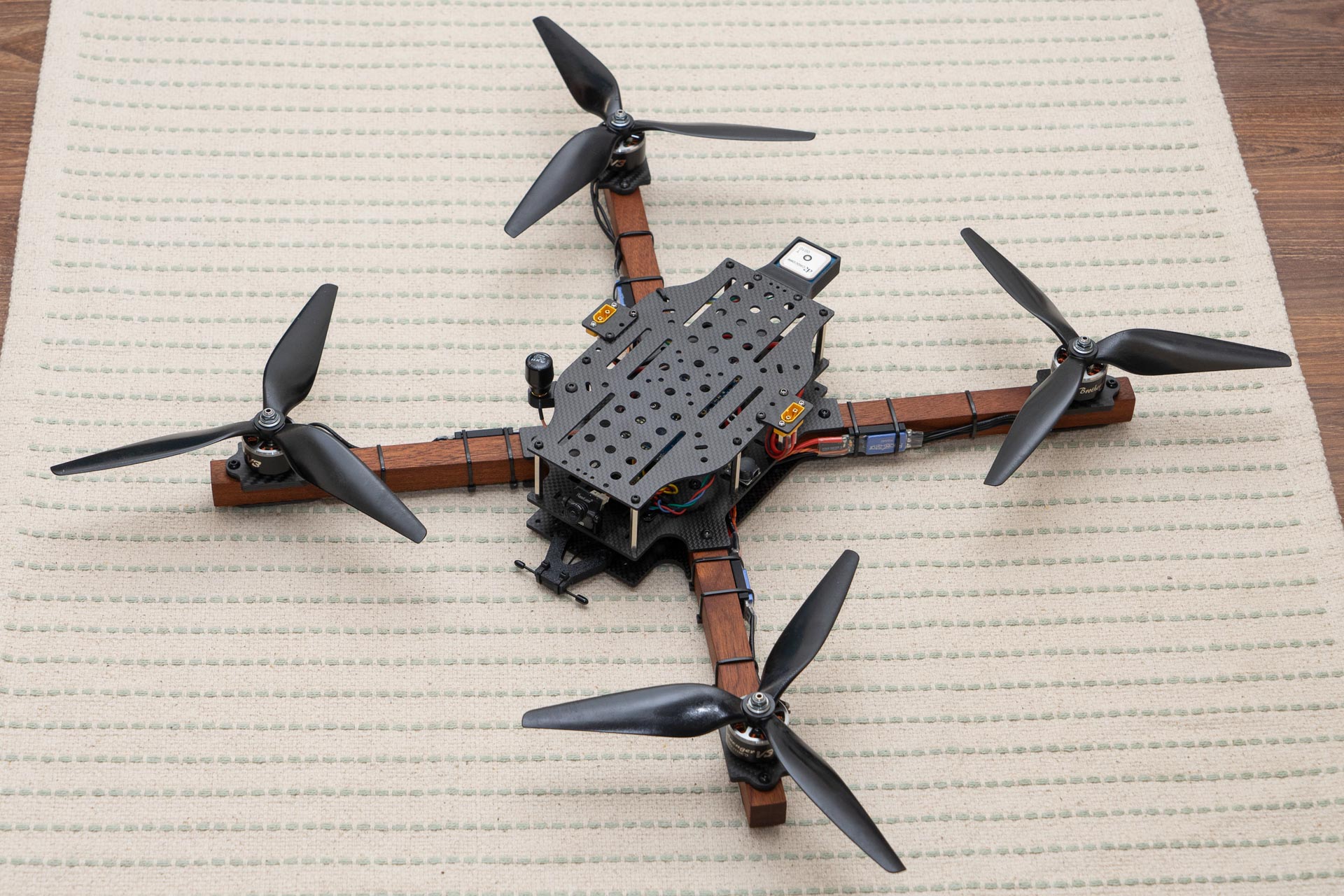

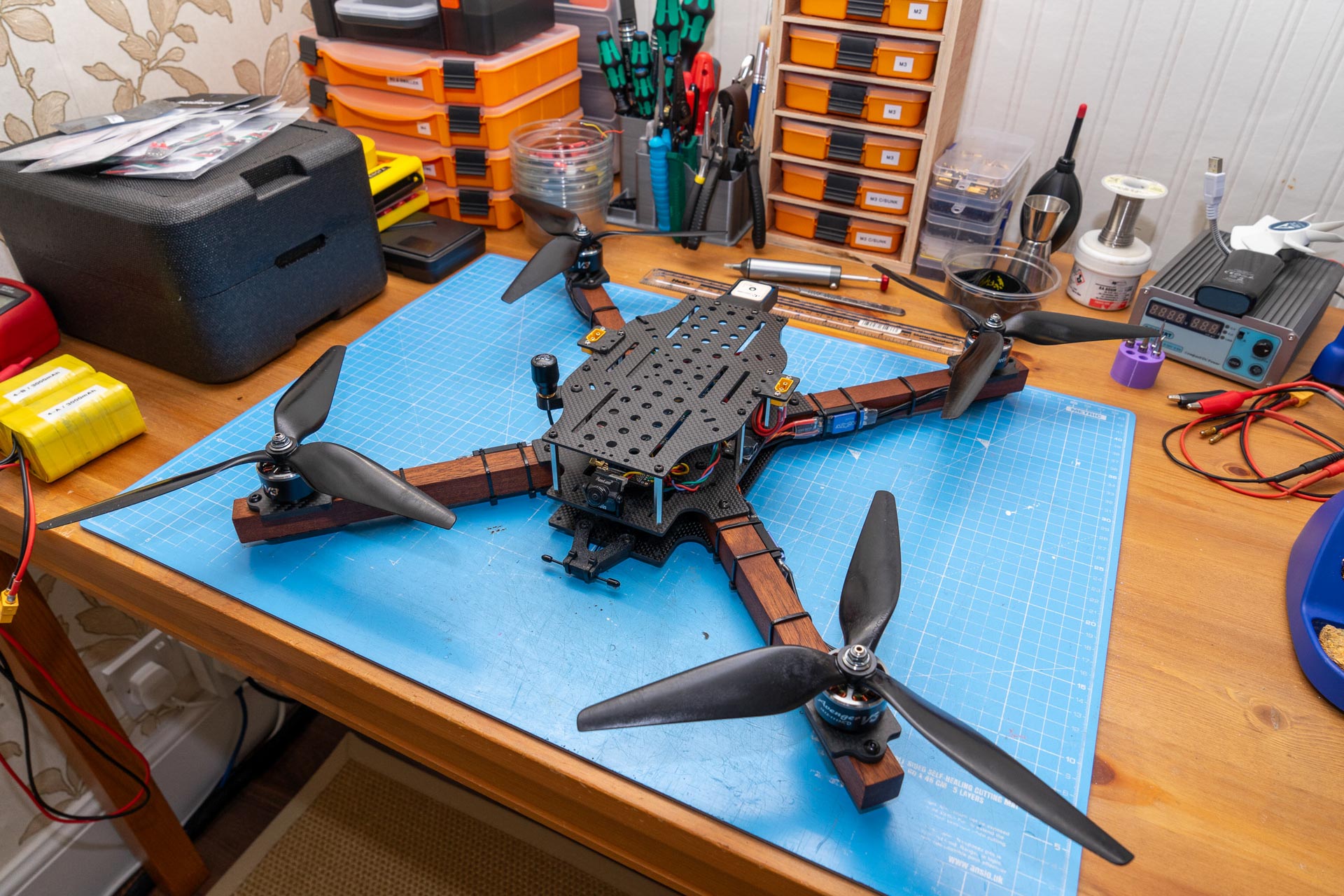

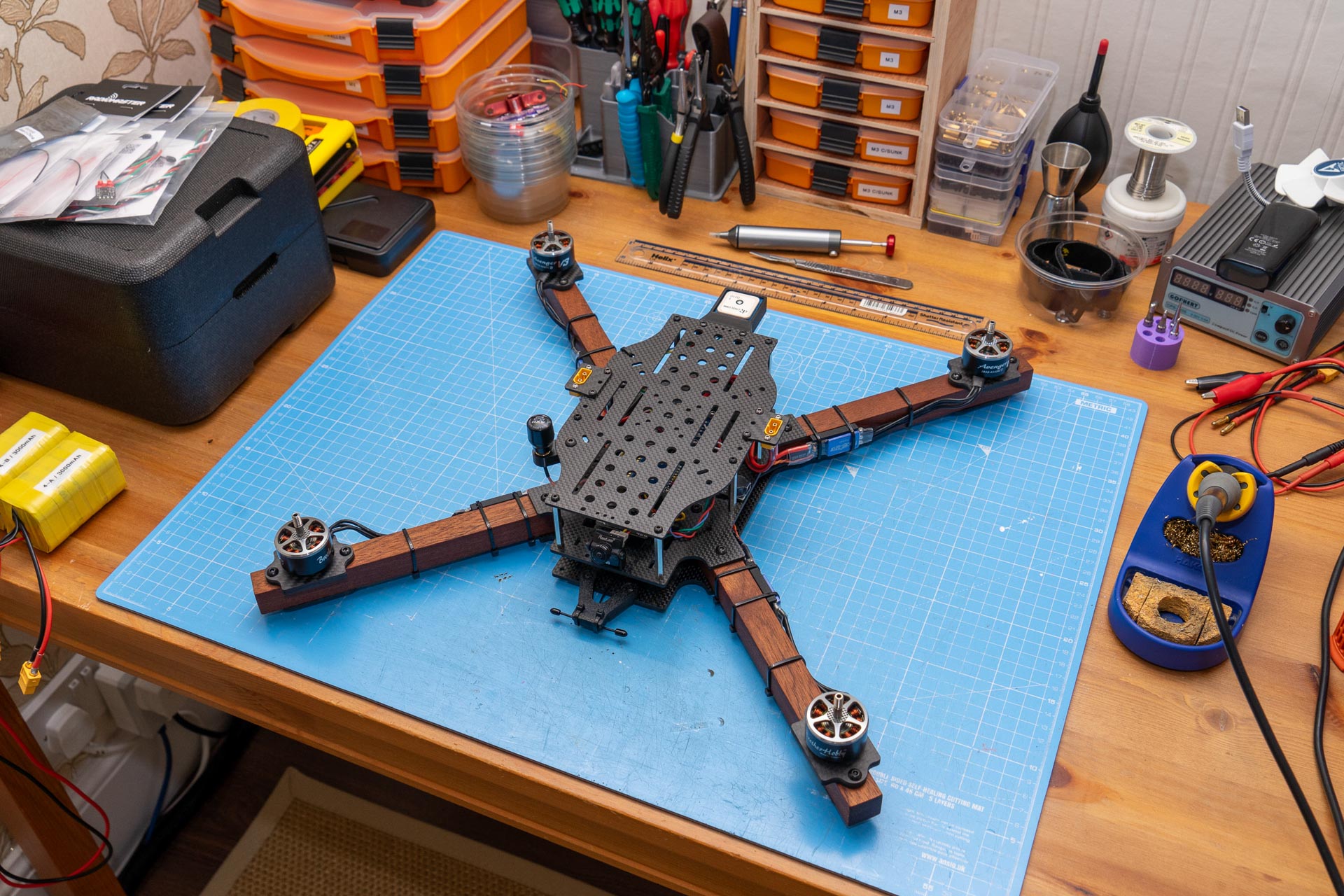

Macroquad multirotor drone frame

A further iteration of my macro multirotor frame designs.

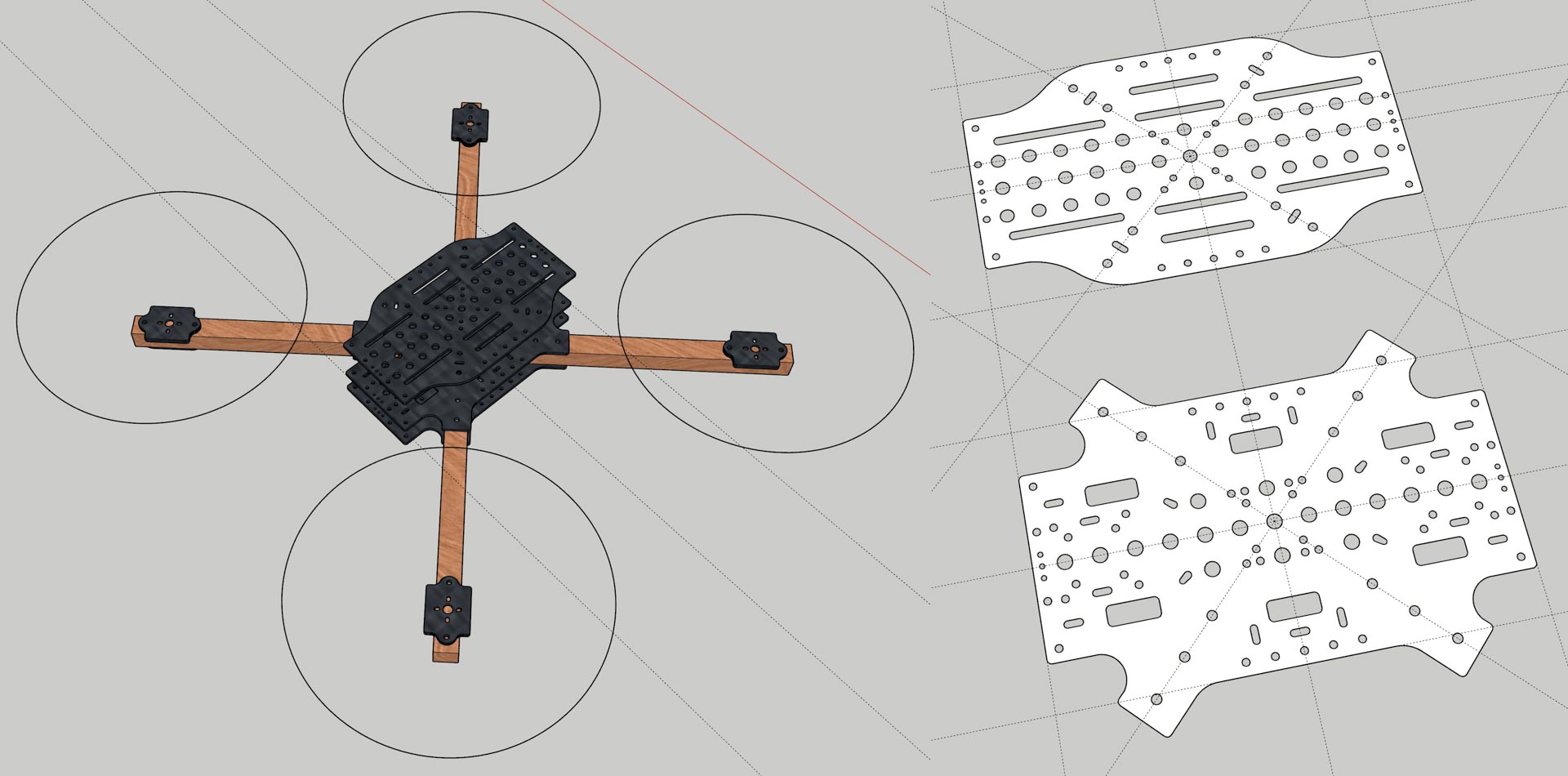

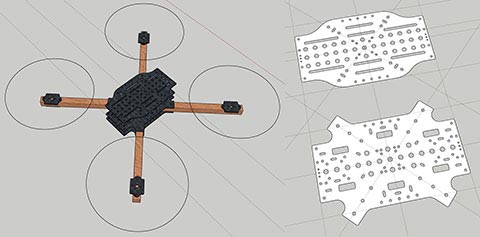

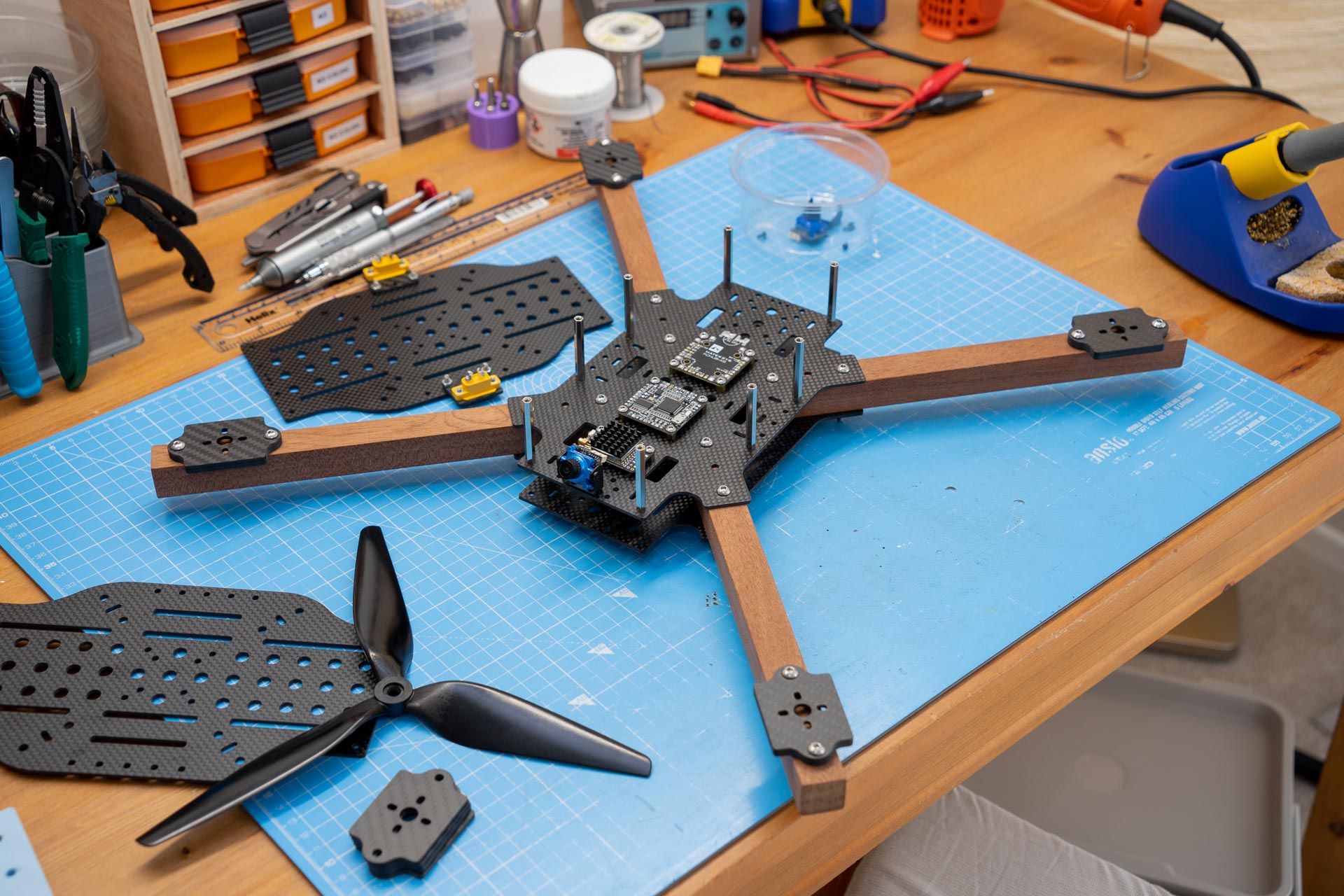

While I really liked the look of my original Macroquad design, I never had much use for the length of the frame while simultaneously the width wasn't quite enough to mount four 21700 cells side by side. So for this new version I both shortened & fattened the carbon parts.

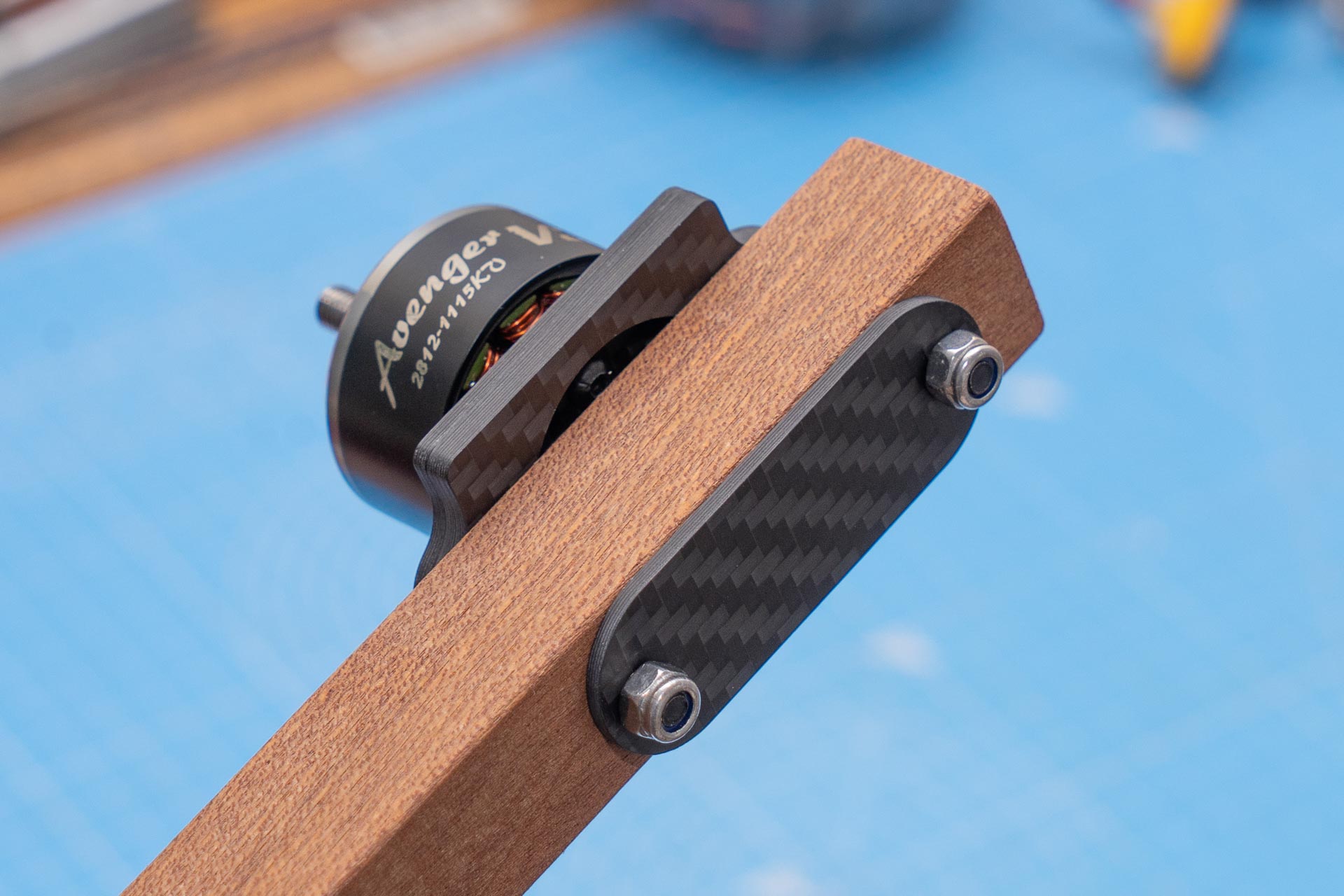

I went back to wooden arms purely for looks: I think the contrast of the oiled Sapele wood against the carbon fibre looks great!

RotorBuilds entry here.

Download DXF files here (.zip 198KB).
